If you use Thought Technology sensors and recorder, you can physically connect our VideoSyncPro Studio recording station with the Thought Technology recorder.
The signaling relies on the Deditec USB Relay cable but the default parallel plug needs to be cut-off to connect the push button cable instead.
For the connection with Thought Technology equipment, we use the 'Push button' routine to receive the synchronization signal from VideoSyncPro.

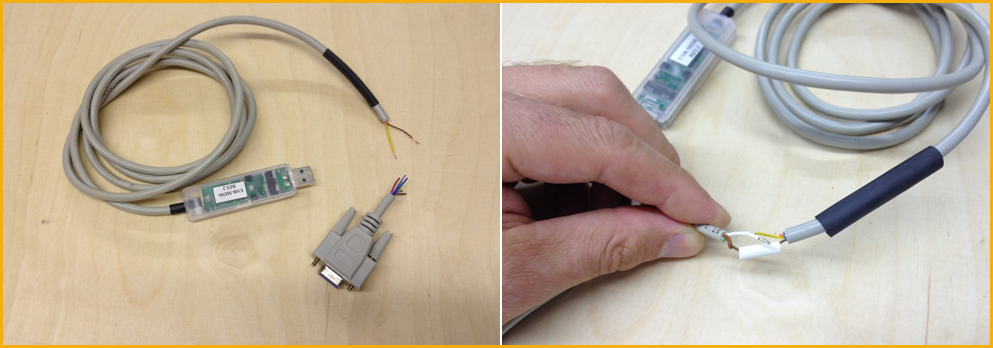

Our cable for that communication looks like this:
IMPORTANT: We only send a signal to open or close the switch, which means that if you can use a signal of, e.g., 3 Volt, from a Pin-Out on your device, you can return this same signal to the required Pin-In of your equipment to receive your synchronization signal.
If you plan to do so, make sure you test which wire is connected to which pin, because the colors often change.
