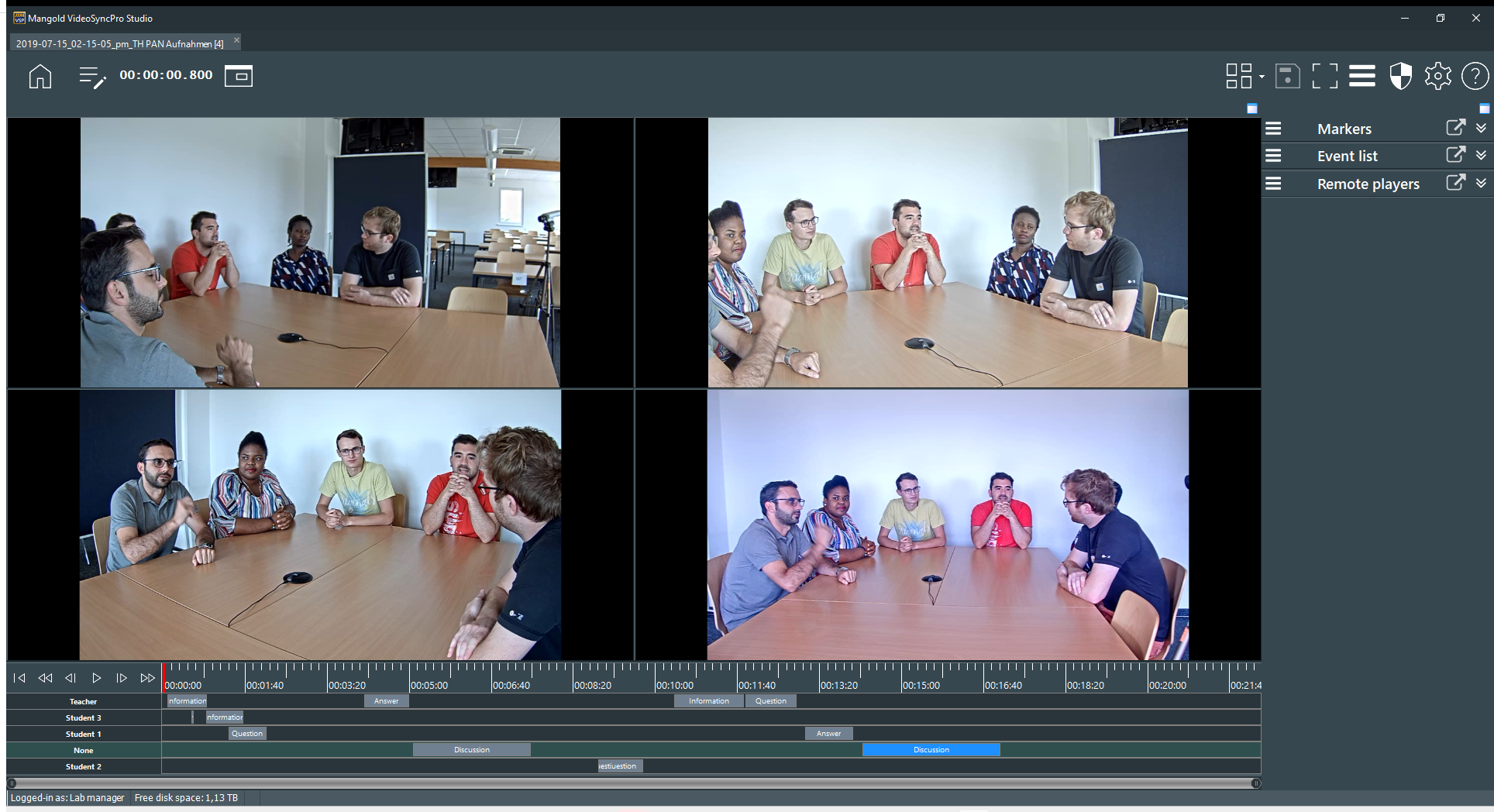

When reviewing previous recordings, VideoSyncPro Studio displays the recordings in its the Replay Screen:
The marker entires below the time line are only available when markers are logged.
If no marker function is available within your VideoSyndPro software, contact our sales team at sales@mangold-internatioinal.com.Toolbar
|

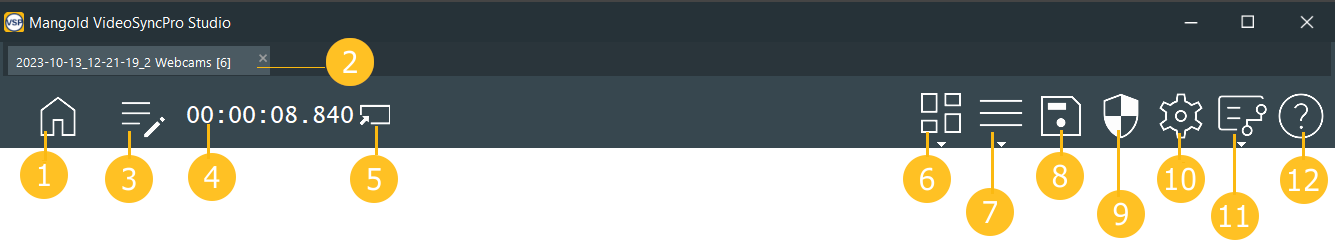

Home - To return to the home screen of VideoSyncPro Studio |
|
Recording name - Tab shows the name of the open session |
|
Session description - Enter a free text description for the current recording |
|
Time - Showing the elapsed time of the current recording |
|
Time Overlay - To display an additional timer with real time information |
|
Layout - Menu with possible video layouts, depending on the number of videos for the current recording. |
|
Menu - Hamburger-menu with additional available functionalities, its content depends on the currently logged-in user |
|
Save - To save changes in the current scenario or Markers and Events, only active if unsaved changes are available |
|
Security - Switch between users to gain more rights |
|
Settings - Application settings dialog, per default only accessible for the Lab Manager and Administrator |
|
Action Scripts - Menu showing predefined scripts, if available. |
|
Help - Access to both online and local documentation and verify the software version under About. |
Timeline

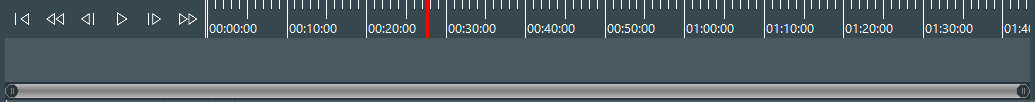

Underneath the videos there is a timeline that covers the whole recording:
The red line indicates the current position of the video. Clicking into or dragging across the timeline will reposition the videos.
The possibility to zoom into the timeline using the scroll-bar at the bottom, allows for more precise positioning of the video with help of the timeline, especially for long recordings.
Video Controls
At the left of the timeline are the video controls:
|
Go to the start - positions the videos at the start of the recording |
|
Fast rewind - Rewinds the videos at high speed |
|
Frame reverse - Move videos one Frame reverse |
|
Play - Start playing the current videos |
|
Frame forward - Move videos one Frame forward |
|
Fast forward - Plays the videos at high speed |
Marker Timeline

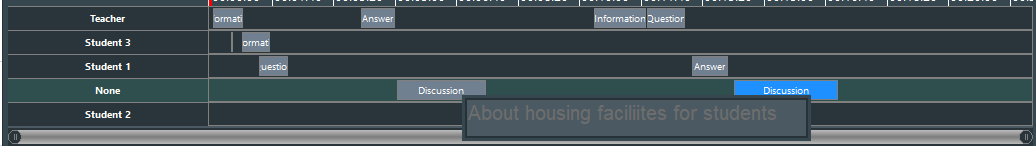

If your setup contains a Marker & Debriefing license AND Markers are logged for the current session, these Markers are displayed like this, underneath the timeline:
oHover above an entry to see additional comments, if available.
oClicking onto a Marker positions the videos to the start of that Marker.
oRe-assign a Marker to another Subject by dragging the Marker into another subject line.
oChange the position in time of a Marker by re-positioning is on the timeline.
oChange duration of a Marker by dragging the start or the end to its required position.
